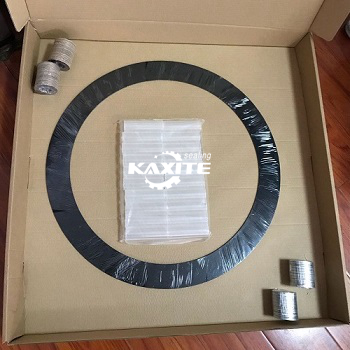

Neoprene Faced Phenolic Flange Insulation Gasket Kit
Details:
Neoprene Faced Phenolic Gaskets have been used as standard ''flat'' isolating gaskets in the oil and gas industries for many years.
Soft neoprene rubber sheets are factory applied to both sides of a laminated phenolic retainer providing an effective sealing surface.
The temperature limit of these gaskets is approximately +175o F. (+80o C.)
Gasket Type:
Type E (Full Face Gasket)This gasket kit provides complete protection of both flange faces. The gasket has same outside diameter of
flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.
Type F (Ring Gasket)
This gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less
than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out"
the flanges.
